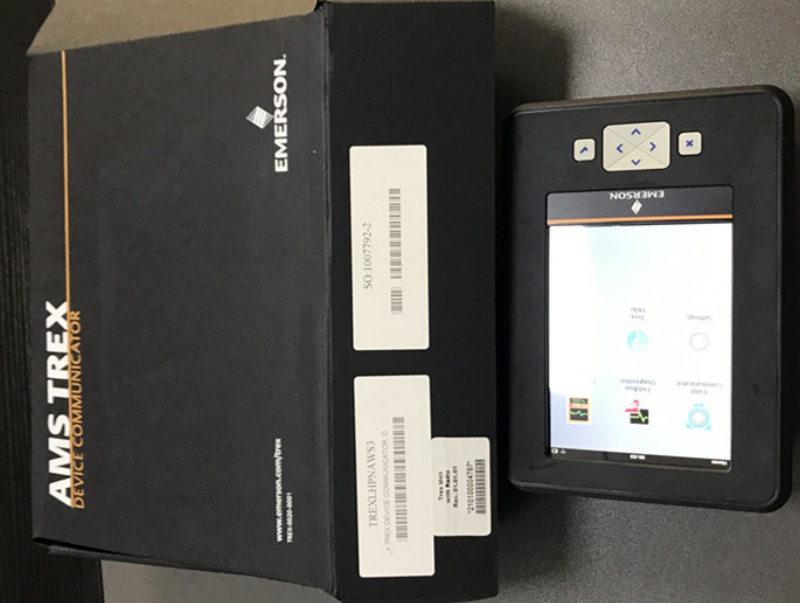

Emerson AMS Trex TREX C-F-P-KL-9-S1-S Handheld Device Communicator for HART and FOUNDATION Fieldbus Applications Efficient Field Commissioning, Configuration, Diagnostics and Industrial Instrument Maintenance

Emerson AMS Trex TREX C-F-P-KL-9-S1-S is a portable field device communicator developed for technicians who commission, configure and troubleshoot intelligent instrumentation. It brings device information to the point of work, allowing maintenance personnel to check status, review configuration and investigate loop problems beside the installed instrument. This can reduce repeated travel between the field and the control room and helps teams make better decisions during startup, shutdown and routine maintenance.

What the communicator helps technicians do

The Trex platform is intended to support common field-instrument tasks without requiring a permanent engineering workstation at every location. Depending on the installed module, licensed applications and connected device, a technician can use it to:

• identify a connected device and review its tag, range and process-variable information;
• read active device alerts and diagnostic messages before removing equipment from service;
• check or change configuration parameters under the plant change-control procedure;
• support loop commissioning, replacement-device setup and post-maintenance verification;
• document the condition of pressure, temperature, flow, level, valve and analytical instruments.

HART and FOUNDATION Fieldbus communication

AMS Trex is designed for work with supported HART and FOUNDATION Fieldbus devices. For HART loops, it can give field personnel access to digital device information carried alongside the conventional process signal. For Fieldbus instruments, the appropriate connection and communication module can support device interaction on compatible segments. Actual availability depends on the TREX C-F-P-KL-9-S1-S hardware configuration, software and device description library, so protocol support should be verified against the instruments used at the site.

Designed for field visibility and industrial handling

The communicator uses a color touchscreen interface that presents device menus, alerts and configuration information in a portable format. Its rugged enclosure is intended for regular industrial field service, while the rechargeable power system supports work away from a desk. For practical use, buyers should consider display condition, battery age, charger type, connector condition and the availability of compatible leads and adapters, especially when purchasing a replacement or spare unit.

Typical plant applications

• New-loop commissioning: confirm device identity, engineering range and key setup values before the loop is released for operation.
• Corrective maintenance: review diagnostics and device status to separate an instrument problem from wiring, power or process issues.
• Instrument replacement: compare the old and new device configuration and verify the replacement after installation.
• Shutdown preparation: collect device information and identify instruments requiring service during the planned maintenance window.
• Routine inspection: check alerts and configuration consistency as part of the site preventive-maintenance program.

Verify the complete TREX C-F-P-KL-9-S1-S package

TREX C-F-P-KL-9-S1-S is a complete configured reference, not only a general Trex family name. Before accepting a quotation, compare the offer with the existing nameplate or approved purchasing record and confirm the following items:

• installed communication module and the required HART or FOUNDATION Fieldbus connection capability;
• power module, charger, regional power cord and expected battery condition;
• test leads, connectors, adapters, carrying case and other included accessories;
• hazardous-area approval required for the intended plant location;
• software version, device description support and update arrangements;
• warranty status and whether the unit is supplied new, refurbished or as a replacement package.

Information to include with a quotation request

Use the full Emerson reference TREX C-F-P-KL-9-S1-S on the RFQ. Also provide the destination country, required communication protocol, hazardous-area classification and a list of mandatory accessories. If the communicator is replacing an existing unit, include clear photographs of the nameplate, communication module, power module and connectors. Recording these details makes it easier to confirm compatibility and helps prevent delivery of a base unit that is missing the required module, cable or charging package.

Good practice before field connection

Only trained personnel should connect the communicator in accordance with the site electrical and hazardous-area procedures. Inspect the leads and connectors, confirm the permitted connection point, and verify that the selected application matches the device and protocol. Configuration changes should be authorized and recorded so that the field device, control-system database and maintenance records remain consistent.
