Building a Dependable Non-Contact Level Measurement Point Around the Rosemount 5408A1SHA2NA1R4DACAA4M5Q8

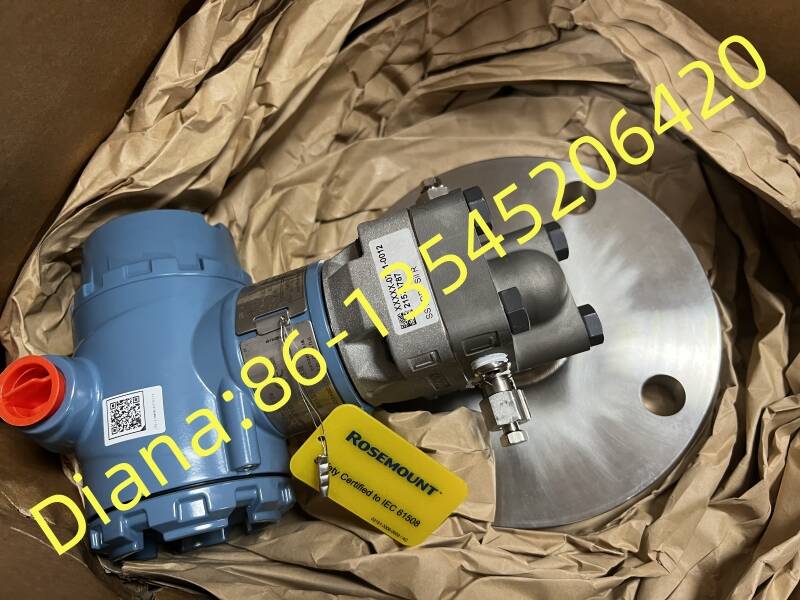

The Rosemount 5408A1SHA2NA1R4DACAA4M5Q8 belongs to the 5408 family of two-wire, non-contact radar level transmitters. Frequency Modulated Continuous Wave technology provides a strong basis for continuous tank monitoring where turbulence, foam, condensation, product build-up or changing process conditions make level measurement difficult.
The full ordering code is part of the measurement design
A Rosemount 5408 is configured through a long model code that captures hardware, antenna, process connection, material, communication and option choices. For this reason, 5408A1SHA2NA1R4DACAA4M5Q8 should be checked character by character against the approved instrument datasheet. Family-level performance data cannot confirm that every mechanical or certification option matches a particular vessel.
| Configuration checkpoint | Rosemount 5408 project basis |
|---|---|
| Model | Rosemount 5408A1SHA2NA1R4DACAA4M5Q8 |
| Measurement principle | Two-wire FMCW non-contact radar |
| Radar frequency range | 24.05 to 27.0 GHz, subject to regional approvals |
| Typical output | 4–20 mA with HART communication |
| Typical duties | Tank monitoring, process control and overfill-prevention applications on liquids, slurries or solids |
| Diagnostic capability | Onboard diagnostics and Smart Echo Supervision within the 5408 platform |
Good echo quality begins with the nozzle and beam path
Radar installation should provide a clear view of the product surface. Nozzle diameter and height, antenna projection, nearby ladders, agitators, heating coils and fill streams all influence the echo profile. The transmitter should be positioned so the main beam avoids permanent obstructions and the strongest process reflection remains distinguishable across the full operating range.
For viscous or condensing service, consider how deposits may form on the antenna and whether the process connection allows inspection. For solids, review the filling pattern, angle of repose and expected dust. For liquids, document dielectric properties, turbulence and vapor conditions. These application details help determine whether the exact Rosemount 5408A1SHA2NA1R4DACAA4M5Q8 configuration is appropriate.
Commissioning should preserve evidence, not just a final reading
Record reference height, lower and upper range values, blocking distance, tank geometry and the initial echo curve. Compare radar output with a trustworthy level reference at practical operating points, then confirm alarm and failure behavior at the control system. If overfill protection is involved, follow the approved proof-test and functional-safety procedures for the supplied option set.
Once in service, trend signal quality and diagnostic events alongside process conditions. A change in echo behavior may reveal build-up, a new obstruction or altered operating practice before the level signal is lost. Keeping the complete 5408A1SHA2NA1R4DACAA4M5Q8 code, serial number and configuration backup together makes future troubleshooting and replacement much faster.
