ABB FEP631.Y0.S1.0050.D4.T1.B.1.F.0.A.70.A.2.G0.A-DR0.DS0.C0...CMA.CRP..J6.CWY.K0.M5.MS0.CR0.SMA.NC1.NFS.RCD.SC0.TC.TK1.TV2.V0 is a configured ProcessMaster FEP631 electromagnetic flowmeter with an integral-mount transmitter. It is intended for electrically conductive liquids in industrial process service. Because every section of the long order code controls a mechanical, electrical, calibration or documentation choice, buyers should confirm the complete code against the nameplate and current ABB data sheet before approving a quotation or replacement.

The configuration includes a DN50 (2-inch) meter size, DIN PN40 process connection, PTFE liner, carbon-steel process connection material, standard electrode design and titanium measuring electrodes. The Y0 selection denotes a non-explosion-protected CE configuration, while S1 identifies the single-compartment aluminum housing with M20 × 1.5 cable entries. These details make the exact suffix important: another FEP631 with the same nominal diameter may still have different pressure class, liner, electrodes, power, outputs or approvals.

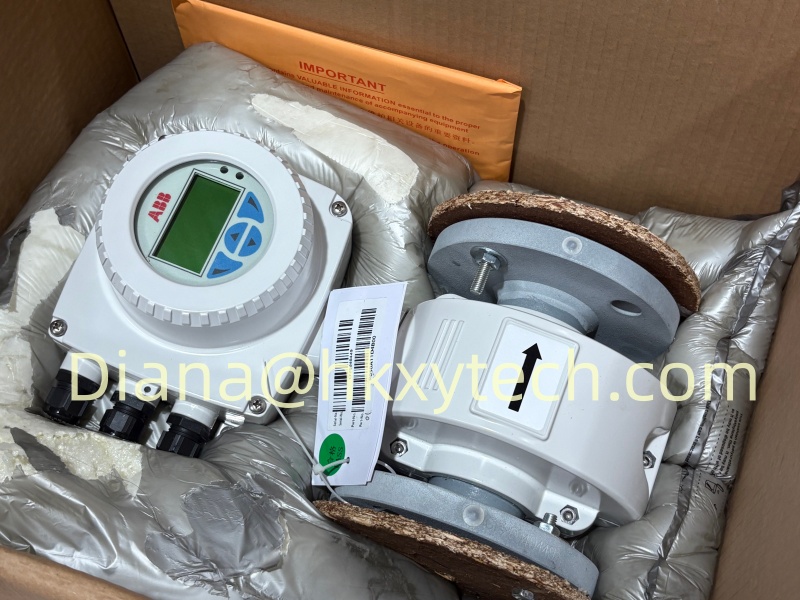

Reference image of the ABB FEP631 integral-mount electromagnetic flowmeter. Final acceptance should follow the complete order code, device nameplate, supplied certificates and the latest ABB documentation.

Engineering Selection, Installation, Grounding and Commissioning Guide for the ABB FEP631.Y0.S1.0050.D4.T1 DN50 ProcessMaster Electromagnetic Flowmeter in Industrial Liquid Flow Applications

The remaining selections in ABB FEP631.Y0.S1.0050.D4.T1.B.1.F.0.A.70.A.2.G0.A-DR0.DS0.C0...CMA.CRP..J6.CWY.K0.M5.MS0.CR0.SMA.NC1.NFS.RCD.SC0.TC.TK1.TV2.V0 should be decoded from the current ABB ordering table rather than inferred from a similar online listing. The quotation should reproduce the code exactly, including dots, hyphens and option positions.

Engineering Selection, Installation, Grounding and Commissioning Guide for the ABB FEP631.Y0.S1.0050.D4.T1 DN50 ProcessMaster Electromagnetic Flowmeter in Industrial Liquid Flow Applications

Electromagnetic flow measurement requires a conductive liquid. ABB lists a minimum conductivity above 5 µS/cm for the ProcessMaster FEP630 family, with a higher requirement for demineralized water. The application review should record the liquid, conductivity, normal and maximum flow, temperature, pressure, solids content, chemical concentration and cleaning conditions. These data confirm whether the PTFE liner and titanium electrodes in this FEP631 configuration are appropriate.

Sizing should be based on the expected velocity and measurement range, not only on the existing pipe diameter. A DN50 meter installed in an oversized line may operate at low velocity, while an undersized meter can create unnecessary pressure loss and process constraints. Ask the supplier to document the selected measuring range, engineering units, current-output scaling and totalizer behavior.

Engineering Selection, Installation, Grounding and Commissioning Guide for the ABB FEP631.Y0.S1.0050.D4.T1 DN50 ProcessMaster Electromagnetic Flowmeter in Industrial Liquid Flow Applications

• Install the ABB FEP631 where the measuring tube remains completely full during normal operation, shutdown and restart.

• Follow ABB guidance for orientation and upstream or downstream piping, and avoid locations dominated by gas pockets, severe swirl or partially filled pipe.

• Support the connected pipe independently so the PN40 flanges are aligned without using the meter to pull the pipe into position.

• Use gaskets, bolts and tightening practices compatible with the PTFE-lined measuring tube and the project pressure class.

• Apply the specified potential-equalization and grounding method for the pipe material, process connection and electrode arrangement.

• Protect the integral transmitter from excessive heat, vibration, flooding and inaccessible mounting while preserving display and cable-entry access.

Correct grounding is especially important for a magnetic flowmeter because the measurement is based on the small voltage induced in the conductive liquid. Poor potential equalization, shield discontinuity or inappropriate grounding rings can produce unstable readings that may be mistaken for an electronics fault.

Engineering Selection, Installation, Grounding and Commissioning Guide for the ABB FEP631.Y0.S1.0050.D4.T1 DN50 ProcessMaster Electromagnetic Flowmeter in Industrial Liquid Flow Applications

1. Compare the full ABB FEP631 order code, serial number, DN50 size and PN40 flange marking with the purchase record.

2. Confirm flow direction, full-pipe condition, liner condition, grounding, power wiring, cable sealing and output terminals.

3. Set engineering units, flow range, 4–20 mA scaling, pulse value, totalizer direction, damping and low-flow cutoff according to the approved control narrative.

4. Check zero-flow behavior only under a verified full-pipe, no-flow condition; do not use a false zero to hide installation problems.

5. Run loop tests for normal flow, alarm states and totalization, then compare the transmitter and control-system values.

6. Save the final parameter record, factory calibration certificate, wiring diagram and acceptance results under the equipment tag.

The RCD code indicates standard 0.4% factory calibration for this configuration, while TV2 identifies two test points and V0 indicates that verification capability is disabled. If the project requires enhanced verification, extra test points or witnessed calibration, those requirements should be added before purchase rather than assumed to be included.

Engineering Selection, Installation, Grounding and Commissioning Guide for the ABB FEP631.Y0.S1.0050.D4.T1 DN50 ProcessMaster Electromagnetic Flowmeter in Industrial Liquid Flow Applications

For unstable or unexpected flow readings, first check whether the pipe is full, the liquid remains conductive, grounding is intact and process conditions have changed. Review deposits on the liner or electrodes, gas entrainment, valve position, electrical noise, output scaling and totalizer configuration before replacing the transmitter. Preserve the original parameter file and diagnostic record before making major changes.

A replacement should match more than the FEP631 family name. Compare the complete order code, face-to-face dimensions, flange rating, liner, electrodes, power supply, communication, outputs, ambient range, calibration and documentation. This prevents a visually similar meter from being installed with an incompatible process connection or option set.

Engineering Selection, Installation, Grounding and Commissioning Guide for the ABB FEP631.Y0.S1.0050.D4.T1 DN50 ProcessMaster Electromagnetic Flowmeter in Industrial Liquid Flow Applications

For a focused quotation, provide HKXY Tech with the exact ABB FEP631.Y0.S1.0050.D4.T1.B.1.F.0.A.70.A.2.G0.A-DR0.DS0.C0...CMA.CRP..J6.CWY.K0.M5.MS0.CR0.SMA.NC1.NFS.RCD.SC0.TC.TK1.TV2.V0 code, quantity, destination, required delivery date, process liquid, conductivity, flow range, temperature, pressure, power, outputs, communication, certificates and equipment tag. Ask for a photograph of the offered nameplate and confirmation of every deviation from the requested code.

Industrial buyers may also search for this product as an ABB ProcessMaster FEP631 DN50 flowmeter, ABB FEP630 magnetic flow meter, 2-inch PN40 electromagnetic flowmeter, PTFE-lined magmeter or integral-mount ABB flow transmitter. These related terms support product discovery, but the complete model string remains the controlled identity for sourcing and acceptance.
