Designing a Reliable Copper-to-Single-Mode Fiber Link with the MOXA IMC-21GA-LX-SC Industrial Gigabit Media Converter

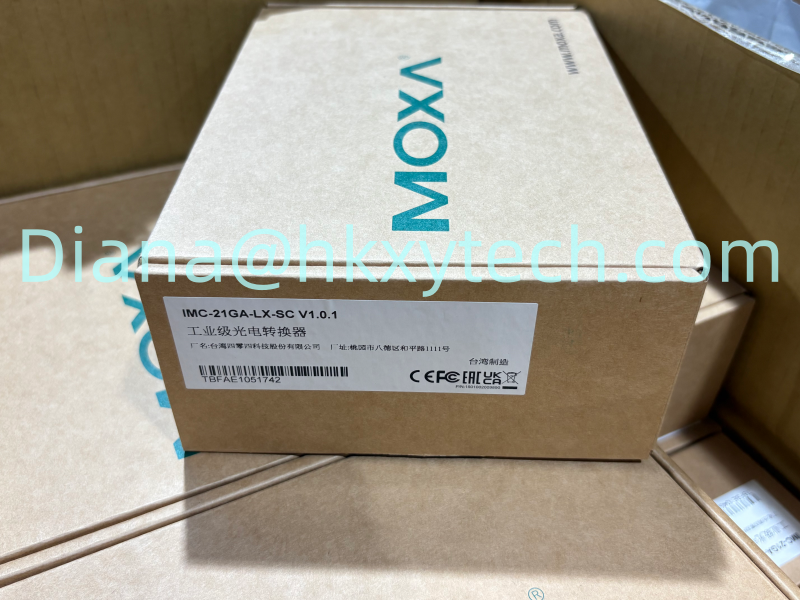

The MOXA IMC-21GA-LX-SC is an industrial Gigabit Ethernet media converter for connecting copper Ethernet equipment to single-mode optical fiber. It combines one 10/100/1000BaseT(X) RJ45 interface with a fixed 1000BaseLX single-mode SC fiber interface. This makes the MOXA IMC-21GA-LX-SC useful when a control cabinet, machine network or remote station needs fiber immunity and greater reach without replacing the connected copper Ethernet device.

Start with the Link, Not the Converter

Before selecting the MOXA IMC-21GA-LX-SC, document both endpoints, required bandwidth, cable route, fiber type, connector type, expected loss and environmental conditions. The LX-SC model uses a 1310 nm single-mode optical interface with SC connectors. Both ends of the link must use compatible optical standards, wavelength and fiber.

A fiber run should be accepted using an optical-loss budget rather than distance alone. Include attenuation from cable length, connectors, splices, patch panels and an engineering margin. The MOXA IMC-21GA-LX-SC should be matched with the remote optical port using the published transmit and receive specifications for both devices.

Why Fiber Helps Industrial Ethernet

Fiber provides electrical isolation between network segments and is resistant to electromagnetic interference. The MOXA IMC-21GA-LX-SC can therefore help connect equipment across noisy plant areas, between buildings or along routes where ground-potential differences make copper links undesirable. The copper interface also includes built-in magnetic isolation protection specified by Moxa.

The MOXA IMC-21GA-LX-SC supports Gigabit transmission and 10K jumbo frames, which can improve performance for applications using larger Ethernet frames when the complete network supports the same setting. IEEE 802.3az Energy-Efficient Ethernet support can reduce power use during low-traffic periods. Network settings must remain compatible across switches and connected devices.

Cabinet and Power Planning

• Confirm the available DC power source and protection arrangement.

• Reserve DIN-rail space with ventilation around the MOXA IMC-21GA-LX-SC.

• Protect fiber jumpers from sharp bends, crushing and contamination.

• Separate copper data cable from high-voltage and variable-frequency drive wiring.

• Label fiber transmit and receive paths at both ends.

The standard MOXA IMC-21GA-LX-SC model is listed for an operating-temperature range of -10 to 60 degrees C. For colder or hotter locations, compare the requirement with the extended-temperature variant rather than assuming the standard unit is suitable.

Commissioning the Optical Path

Clean SC connector end faces before connection and keep protective caps in place until use. Verify transmit-to-receive orientation, then power the MOXA IMC-21GA-LX-SC and confirm the power, copper-link and fiber-link indications. A link LED proves basic connectivity but does not prove adequate optical margin or error-free traffic.

Test communication under representative load. Check negotiated copper speed, packet loss, error counters and recovery after a controlled power cycle. If jumbo frames are enabled, verify the complete path rather than configuring only the MOXA IMC-21GA-LX-SC side of the network.

Troubleshooting Without Random Part Replacement

If the fiber link is down, inspect connector cleanliness, fiber type, Tx/Rx orientation and remote-port compatibility. If the fiber link is stable but copper communication fails, check RJ45 pinout, auto-negotiation and the connected device. Intermittent faults may be caused by marginal optical loss, tight fiber bends, unstable power or temperature rather than the MOXA IMC-21GA-LX-SC itself.

Keep the MOXA IMC-21GA-LX-SC model, serial number, fiber route, optical test results and network settings in the asset record. With a verified loss budget, protected fiber routing and complete link testing, the MOXA IMC-21GA-LX-SC can provide a dependable bridge between copper Ethernet equipment and single-mode industrial fiber infrastructure.
