Field Engineering the E+H 7D2B50-5RH9/0 Prowirl D 200: A Practical Route from Process Data to Stable Vortex Flow Measurement

-

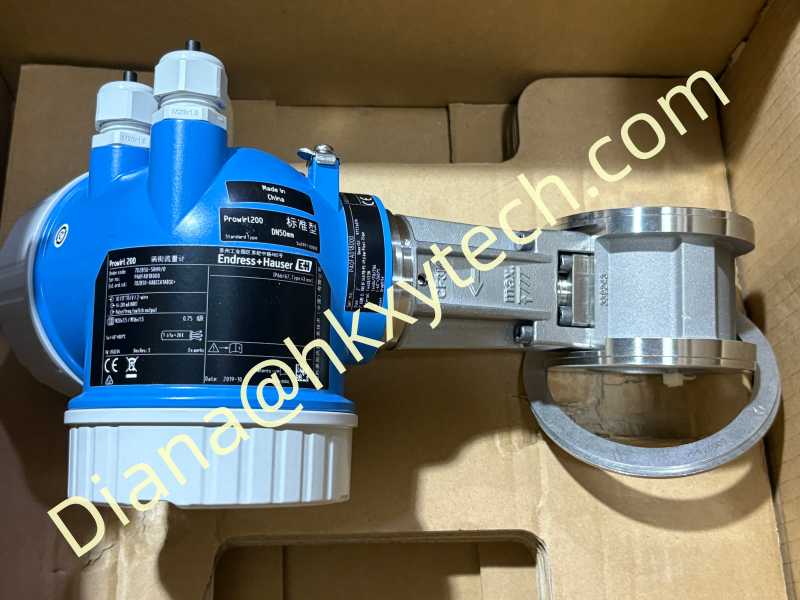

The E+H 7D2B50-5RH9/0 belongs to the Proline Prowirl D 200 / 7D2B vortex flowmeter family. It is a compact wafer-style instrument for liquid, gas and steam duties.

The complete E+H 7D2B50-5RH9/0 ordering code must be checked because size, electronics, output, approvals and other options depend on the selected configuration.

-

-

Question: Is the process suitable for vortex measurement?

Record the medium, density, viscosity, pressure, temperature and minimum, normal and maximum flow. The process must remain inside the configured range, and liquid applications should maintain a full pipe.

A meter selected only from pipe diameter may spend too much time below its effective measuring region. Size the E+H 7D2B50-5RH9/0 from actual process conditions and required turndown.

Question: What should be verified on the product platform?

• Product family: Proline Prowirl D 200 / 7D2B.

• Wafer-style sensor available across the DN 15 to DN 150 family.

• Published variables include volume flow, mass flow, corrected volume flow, energy flow and temperature, depending on configuration.

• Series pressure options extend to PN 40, Class 300 or 20K.

• Published protection reference is IP66/67, Type 4X for applicable configurations.

• Communication may include HART, PROFIBUS PA or FOUNDATION Fieldbus.

These are platform references. Confirm what is actually included in the full E+H 7D2B50-5RH9/0 code.

Question: Can the pipework deliver a stable flow profile?

Elbows, control valves, reducers and branches can disturb the flow profile. Position the E+H 7D2B50-5RH9/0 according to the official straight-run guidance for the specific disturbance.

The wafer body must be centered accurately between mating flanges. Tighten bolts evenly and keep gaskets clear of the bore. Mechanical stress, poor alignment or protruding gaskets can influence measurement and pressure loss.

-

Do This During Installation

• Confirm the flow arrow and pipe direction.

• Record the nearest upstream and downstream disturbance.

• Use the specified centering hardware.

• Check gasket position and pipe stress.

• Verify supply, output type, loop load, grounding and cable route.

• Record medium, pressure, temperature and expected flow range.

Avoid These Common Errors

• Do not size the E+H 7D2B50-5RH9/0 from flange size alone.

• Do not place it immediately after a strong flow disturbance without reviewing the manual.

• Do not allow a gasket to project into the bore.

• Do not treat two-phase flow or wet steam as an instrument fault without process checks.

Question: How should commissioning be verified?

Compare the complete E+H 7D2B50-5RH9/0 identification with the loop drawing before applying power. Confirm supply and output requirements, then configure the required medium and engineering units.

Observe zero-flow behavior and several stable operating points. Compare the E+H 7D2B50-5RH9/0 indication with a process balance, tank change, reference instrument or another defensible check.

Question: What does the symptom suggest?

Unstable signal: investigate low flow, vibration, pulsation, wet steam, flashing or two-phase conditions.

Consistent offset: check scaling, density assumptions, centering, installation stress and reference data.

Intermittent diagnostics: compare device messages with process changes before replacing the E+H 7D2B50-5RH9/0.

-

Store the verified E+H 7D2B50-5RH9/0 nameplate and configuration record with the loop documentation.

Lifecycle Note

The manufacturer identifies the historical 7D2B generation as no longer available and references a newer successor. Record the full E+H 7D2B50-5RH9/0 configuration so any replacement can be compared option by option.

Before ordering or replacing the device, verify nameplate, process connection, output and approval details against the complete E+H 7D2B50-5RH9/0 code. Correct sizing, good pipework and disciplined commissioning allow the E+H 7D2B50-5RH9/0 to deliver stable vortex flow measurement.
