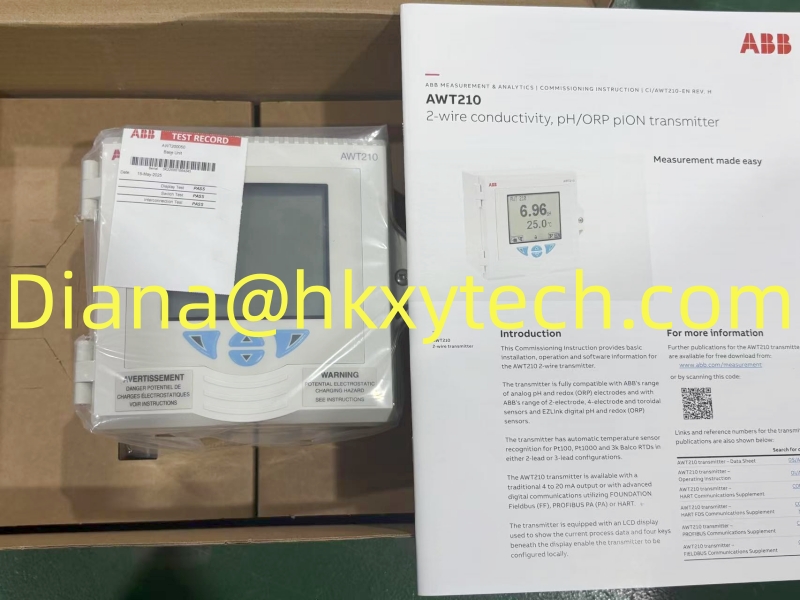

Advanced ABB AWT210/A1P1H1Y0A1U2M5 Two-Wire pH ORP Transmitter with HART for Flexible Industrial Water Analysis
August
05, 2026
Building a More Adaptable Water-Analysis Loop with the ABB AWT210/A1P1H1Y0A1U2M5: A Field Guide to Sensor Selection, Communication and Maintenance
The ABB AWT210/A1P1H1Y0A1U2M5 is a two-wire, single-channel analytical transmitter configured for pH and ORP measurement with HART communication. Its modular architecture allows the ABB AWT210/A1P1H1Y0A1U2M5 to combine a familiar local interface with flexible sensor and communication choices for water, wastewater and industrial process analysis.
What the Complete ABB AWT210/A1P1H1Y0A1U2M5 Code Specifies
The complete order code matters because an AWT210 base model can be assembled with different sensor inputs, communication protocols, enclosures and approvals. For this ABB AWT210/A1P1H1Y0A1U2M5 configuration, the code identifies the following factory selections:
Build revision A with a polycarbonate enclosure.
Analog pH and ORP sensor input.
Two-wire 4-20 mA output with HART.
CE-only agency approval selection.
Pipe-mount kit supplied for field installation.
M16 gland pack and English documentation.
A Modular Platform for Changing Measurement Needs
ABB designed the AWT210 family around replaceable sensor and communication modules. The ABB AWT210/A1P1H1Y0A1U2M5 uses the P1 analog pH/ORP module, while the wider platform can support pH, ORP, pION and multiple conductivity technologies. This architecture helps maintenance teams standardize the user interface while selecting the input module required by each loop.
For system integration, the ABB AWT210/A1P1H1Y0A1U2M5 uses the H1 module for 4-20 mA with HART. Other AWT210 communication modules can support PROFIBUS PA or FOUNDATION Fieldbus, but those options are different order codes and should not be assumed for this unit.
The large monochrome display, four-button navigation and guided setup menus make the ABB AWT210/A1P1H1Y0A1U2M5 practical for local commissioning. Advanced self-diagnostics follow NAMUR NE 107 conventions, helping technicians distinguish maintenance needs from process-related measurement changes.
Commissioning the ABB AWT210/A1P1H1Y0A1U2M5
1. Verify the order code. Confirm that the ABB AWT210/A1P1H1Y0A1U2M5 matches the required pH or ORP sensor, HART loop and installation environment.
2. Inspect the sensor and wiring. Check sensor compatibility, temperature input, shield termination and loop polarity before powering the ABB AWT210/A1P1H1Y0A1U2M5.
3. Complete guided setup. Enter the measurement range, temperature compensation, alarm behavior and device tag through the ABB AWT210/A1P1H1Y0A1U2M5 local interface.
4. Calibrate and document. Perform the approved buffer or process calibration, record the slope and offset, and retain the final ABB AWT210/A1P1H1Y0A1U2M5 configuration with the loop documentation.
Compact Technical Summary
| Parameter | Configuration | Parameter | Configuration |
|---|---|---|---|
| Brand | ABB | Model | AWT210/A1P1H1Y0A1U2M5 |
| Measurement input | Analog pH / ORP | Output | 4-20 mA with HART |
| Channel format | Two-wire, single channel | Enclosure | Polycarbonate, IP66 |
| Mounting | Pipe-mount kit | Cable entries | M16 gland pack |
| Local interface | Monochrome display and four buttons | Diagnostics | NAMUR NE 107 status indication |
Application and Replacement Planning
The ABB AWT210/A1P1H1Y0A1U2M5 is suitable for pH and ORP loops in municipal water treatment, wastewater facilities, chemical processing, pulp and paper, mining and marine applications when the selected sensor and installation comply with site requirements.
When replacing an existing transmitter, compare the complete ABB AWT210/A1P1H1Y0A1U2M5 code rather than checking only the AWT210 family name. Sensor technology, enclosure, communication module, approval, mounting and cable-entry selections all affect compatibility.
For availability or a quotation, provide the complete ABB AWT210/A1P1H1Y0A1U2M5 order code, sensor model, measurement range and loop details. This information supports a more reliable review before the ABB AWT210/A1P1H1Y0A1U2M5 is selected for installation.
