How Honeywell CC-PUIO31 Simplifies Late I/O Changes in Process Automation Projects
The Honeywell CC-PUIO31 is a 32-channel Universal I/O Module for projects that need flexibility after cabinet engineering has begun. Instead of assigning an entire module to one signal type, the Honeywell CC-PUIO31 allows individual channels to be configured for analog input, analog output, digital input or digital output duties.
One Module, Multiple Signal Roles
With 32 soft-configurable channels, the Honeywell CC-PUIO31 gives engineering teams room to absorb instrument-list changes without immediately redesigning module allocation. The same Honeywell CC-PUIO31 hardware can support a mixed group of AI, AO, DI and DO points, subject to the approved system design and channel configuration.
This flexibility can reduce conventional marshalling requirements, cabinet footprint and the number of dedicated spare module types. For brownfield expansions, the Honeywell CC-PUIO31 can also help teams reserve adaptable capacity when final field-device counts are still evolving.
Where the Flexibility Changes the Project Workflow
Use Honeywell CC-PUIO31 channels to preserve options while the final instrument index and signal mix are being reviewed.
Standardize around the Honeywell CC-PUIO31 platform to reduce the number of function-specific module variants that must be staged.
Assign each Honeywell CC-PUIO31 channel according to the verified field signal, then document the configuration and loop-test result.
Review unused Honeywell CC-PUIO31 channels before adding dedicated hardware for newly introduced process points.
Module Facts at a Glance
Brand and model: Honeywell CC-PUIO31
Product family: Series C Universal I/O
Channel count: 32 individually configurable channels
Supported signal roles: AI, AO, DI and DO
IOTA options documented by Honeywell: CC-TUIO31 non-redundant or CC-TUIO41 redundant

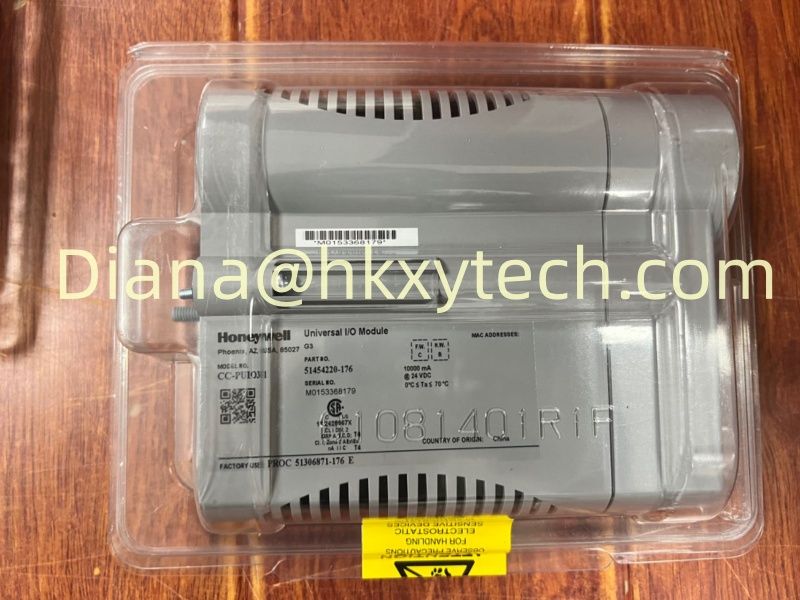

Part number shown on supplied unit: 51454220-176
Ambient marking shown on supplied unit: 0 to 70 degrees C
Commissioning Checks for a Reliable Handover
Before installation, confirm that the Honeywell CC-PUIO31 revision and IOTA selection match the Experion PKS release and cabinet architecture. Check the module label, connector condition, coating requirement and redundancy design against the approved bill of materials.
Verify every Honeywell CC-PUIO31 channel assignment against the latest instrument index.
Confirm field power, grounding and terminal wiring before inserting the Honeywell CC-PUIO31.
Complete channel-by-channel loop testing and record the final Honeywell CC-PUIO31 configuration.
Keep the approved configuration backup with the cabinet and system documentation.
Ordering and Lifecycle Considerations
Honeywell identifies CC-PUIO31 as the recommended successor for certain earlier Universal I/O module arrangements when used with supported Experion releases. A replacement decision should still be based on the complete module, IOTA, firmware and system-version combination rather than the front label alone.
For new cabinets, the Honeywell CC-PUIO31 can reduce the risk created by late signal-count changes. For installed systems, the Honeywell CC-PUIO31 can provide a consistent spare strategy when its hardware and software compatibility have been verified.
For a quotation or compatibility check, share the complete Honeywell CC-PUIO31 model, part number, IOTA model, redundancy requirement and Experion release. These details help ensure that the requested Honeywell CC-PUIO31 is suitable for the intended control cabinet.
