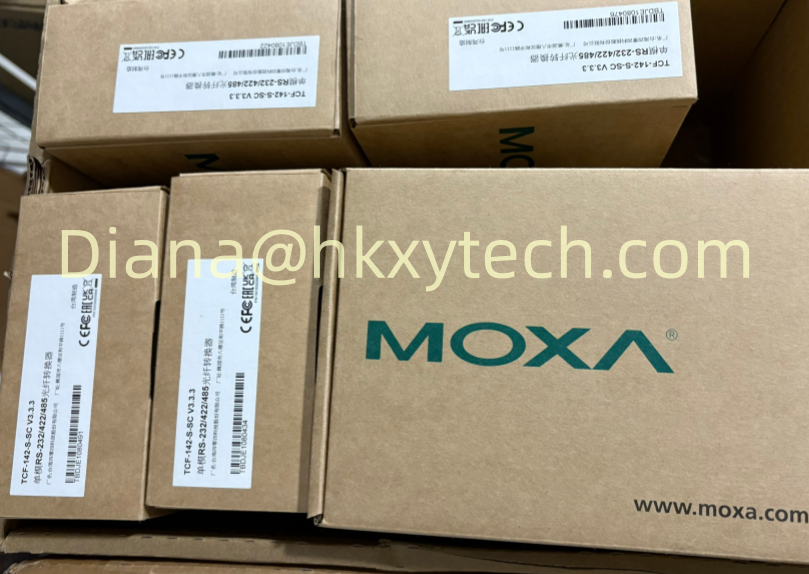

MOXA TCF-142-S-SC-T Serial-to-Fiber Converter for Long-Distance Industrial Communication

The MOXA TCF-142-S-SC-T converts RS-232, RS-422, and RS-485 serial communication to single-mode optical fiber. It is designed for industrial links that need longer transmission distance, improved resistance to electromagnetic interference, and electrical isolation between remote serial devices.

The full code MOXA TCF-142-S-SC-T identifies a specific fiber type, connector, and temperature configuration. Procurement records should retain the complete suffix because multimode and single-mode versions, connector options, and standard or wide-temperature models are not automatically interchangeable.

Why MOXA TCF-142-S-SC-T Is Used for Remote Serial Links

The MOXA TCF-142-S-SC-T allows legacy and current serial equipment to communicate over fiber without replacing the serial interface on each device. This is useful for PLCs, RTUs, meters, access-control equipment, traffic systems, substation devices, and other installations where copper distance or electrical noise creates communication problems.

• RS-232, RS-422, and RS-485 serial interface support

• Single-mode fiber with SC connector

• Typical fiber distance up to 40 km with a suitable optical link

• Point-to-point and fiber ring communication

• Baud rates from 50 bps to 921.6 kbps, including non-standard rates

• ADDC automatic data direction control for RS-485

• Wide operating temperature from -40 to 75 degrees C

Because the MOXA TCF-142-S-SC-T carries serial data over optical fiber, it can help separate ground potential and reduce the effect of electrical interference along the communication path. The complete installation still depends on correct grounding, power, fiber selection, connector cleanliness, and serial wiring.

Compact MOXA TCF-142-S-SC-T Technical Specifications

Planning the MOXA TCF-142-S-SC-T Signal Path

A MOXA TCF-142-S-SC-T installation begins with the serial interface mode. RS-232 normally uses a point-to-point connection, while RS-422 and RS-485 wiring may use different conductor arrangements and termination practices. Baud rate, parity, data bits, stop bits, and device addressing must match at both ends of the communication path.

The optical link for MOXA TCF-142-S-SC-T should be checked for single-mode fiber, SC connectors, total distance, splice loss, connector loss, bend radius, and optical budget. The stated distance is not a guarantee for every cable route; actual performance depends on the complete fiber path and installation quality.

MOXA TCF-142-S-SC-T Industrial Applications

The MOXA TCF-142-S-SC-T is well suited to factory automation, traffic control, utility substations, water facilities, building automation, access control, remote terminal communication, and integration of legacy serial equipment. Wide-temperature operation supports demanding cabinets when the complete power, enclosure, fiber, and environmental design is appropriate.

In a fiber ring arrangement, the converter can help improve communication resilience, but ring behavior must be tested with the actual devices and topology. Installation teams should document fiber direction, serial wiring, power polarity, switch settings, and device addresses before commissioning.

Ordering MOXA TCF-142-S-SC-T Correctly

When requesting a quotation for MOXA TCF-142-S-SC-T, confirm the complete model suffix, single-mode fiber, SC connector, required distance, serial interface, baud rate, power supply, operating temperature, quantity, destination, and delivery target. If an existing unit is being replaced, include clear photos of the label, terminal wiring, fiber connector, and installation.

Keep MOXA TCF-142-S-SC-T visible in the quotation line, purchase order, receiving record, and maintenance database. This reduces the chance of receiving a similar TCF-142 model with a different optical or temperature configuration.
