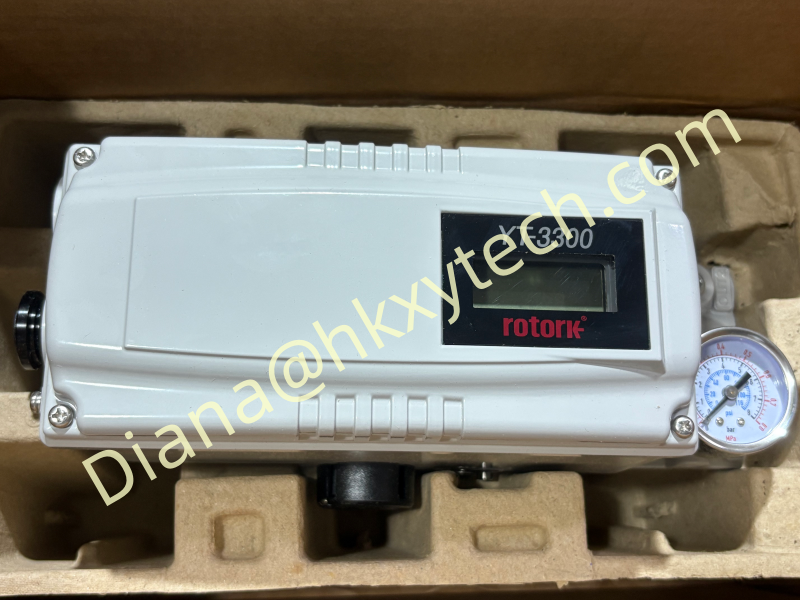

YTC YT-3300LSN1521S Smart Valve Positioner for Linear Pneumatic Control Valves with 4-20 mA Input, Automatic Calibration and Local LCD Setup
October
10, 2026
YTC YT-3300LSN1521S setup guide: match the valve first, then calibrate the positioner
YT-3300LSN1521S is a configured smart positioner for a linear pneumatic control valve. The ordering suffix matters because the positioner must match the actuator, linkage, electrical functions and site approval. The checklist below keeps the most important decisions visible.
What the YT-3300 family provides
The positioner receives a 4-20 mA command and regulates pneumatic output so the valve follows the requested travel. Family features include automatic calibration, LCD indication, PID control, an auto/manual switch and four local buttons. HART, feedback and limit-switch functions depend on the ordered configuration and must be confirmed from the complete YT-3300LSN1521S code.
Configuration points at a glance
Valve movement: confirm a linear actuator and record full stroke.
Actuator action: identify single or double acting and the required fail position.
Stroke capability: the YT-3300 family lists 10 to 150 mm for linear configurations.
Air supply: manufacturer family range is 0.14 to 0.7 MPa; actuator limits still apply.
Input signal: 4-20 mA DC.
Options: verify HART, position feedback, limit switches, cable entry and approvals from the suffix.
A practical installation sequence
Inspect the valve, packing, actuator and linkage for friction, leakage or mechanical damage.
Mount the positioner rigidly and align the feedback lever through the complete valve stroke.
Connect clean, dry, regulated instrument air and check every fitting for leakage.
Connect the 4-20 mA loop with correct polarity, shielding and hazardous-area protection.
Run automatic calibration only when full valve movement is safe.
Test low, middle and high command points in both directions and record the final settings.
If valve response is poor, check these causes first
Slow travel: low supply pressure, restricted tubing, actuator leakage or excessive packing friction.
Hunting: aggressive tuning, linkage play, unstable air supply or an incorrectly adjusted volume booster.
Wrong direction: incorrect actuator action, air-port connection or feedback direction.
Calibration failure: binding linkage, insufficient travel feedback, mechanical stop or supply-pressure problem.
No HART communication: option not included, unsuitable loop resistance, barrier issue or incorrect connection point.
Information to send with the inquiry
Request YTC YT-3300LSN1521S using the full code. Provide the valve tag, actuator manufacturer and model, stroke, single- or double-acting operation, fail position, supply pressure, mounting photographs, 4-20 mA loop details, HART requirement, feedback or switch requirement, cable entry and hazardous-area approval. Ask the supplier to confirm the supplied bracket and accessories.
