Defining the dimensional origin, sensing circuit and process connection of ABB TSP121.Y0.S2.A1.A01.A4.Y0.N3.T1.K1.T2.B1.Y1 L=290MM for a documented temperature-point replacement
The supplied designation ABB TSP121.Y0.S2.A1.A01.A4.Y0.N3.T1.K1.T2.B1.Y1 L=290MM contains both a long configuration string and a length statement. Those details should remain together throughout purchasing. ABB describes TSP121 as a SensyTemp design with a welded tubular thermowell; the precise element, connection and meaning of the listed length still require the original configuration record.
Which surface defines the length?
For ABB TSP121.Y0.S2.A1.A01.A4.Y0.N3.T1.K1.T2.B1.Y1 L=290MM, obtain a drawing that identifies where the 290 mm dimension begins and ends. An overall length, insertion length and measuring-inset length are different dimensions. Mark the mating connection and tip position on the same drawing. This prevents a replacement from matching the number in a purchasing line while placing the sensing point at a different location in the process.
The sensing circuit must be identified independently
Trace ABB TSP121.Y0.S2.A1.A01.A4.Y0.N3.T1.K1.T2.B1.Y1 L=290MM from the sensing element to the receiving instrument. Establish the element type, lead arrangement and any head-mounted transmitter from records or identification.
A housing photograph does not reveal these choices. Preserve the configured range and units if a transmitter is supplied. This allows the electrical comparison to be made separately from the thermowell and process-connection comparison.

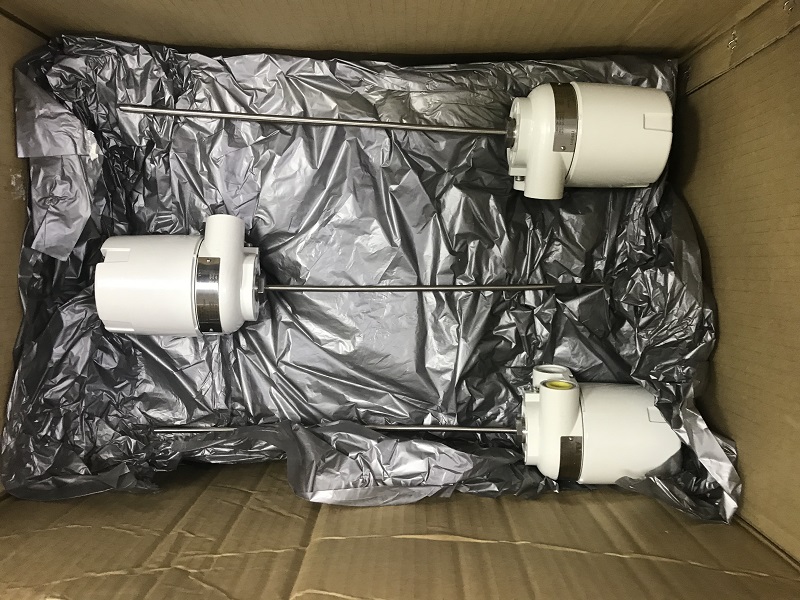

Reference image for ABB TSP121.Y0.S2.A1.A01.A4.Y0.N3.T1.K1.T2.B1.Y1 L=290MM; the shared illustration does not establish the delivered options or included accessories.
Temperature assembly drawing checkpoints
| Review item | Documented value or confirmation needed |
|---|---|
| Full requested designation | ABB TSP121.Y0.S2.A1.A01.A4.Y0.N3.T1.K1.T2.B1.Y1 L=290MM |
| Family construction | TSP121 with welded tubular thermowell |
| Listed length | L=290MM in the supplied reference; confirm measurement origin |
| Sensing element | Verify RTD or thermocouple selection and wiring |
| Process interface | Confirm connection, wetted material and service conditions |
| Signal path | Check direct sensor output or installed transmitter configuration |
Process data explains the mechanical requirement
Include the medium and operating conditions when requesting ABB TSP121.Y0.S2.A1.A01.A4.Y0.N3.T1.K1.T2.B1.Y1 L=290MM. The responsible engineer needs that information to assess material and mechanical suitability against the applicable documentation. Do not infer a pressure rating from the TSP121 family name. If the original installation used a special connection or extension, provide its drawing so the quotation can state whether it is included or retained.
Decide whether the whole assembly is needed
- A request for ABB TSP121.Y0.S2.A1.A01.A4.Y0.N3.T1.K1.T2.B1.Y1 L=290MM may arise from a sensing fault even when the process mounting remains usable.
- Identify the actual replacement scope with maintenance before ordering.
- The measuring inset, connection head and complete thermowell assembly are different supply boundaries.
- Ask the seller to state the boundary clearly, and keep any retained parts visible in the comparison rather than assuming that every component will arrive together.
Calibration records should identify the delivered item
If calibration evidence is required for ABB TSP121.Y0.S2.A1.A01.A4.Y0.N3.T1.K1.T2.B1.Y1 L=290MM, define the points, range and document scope in the enquiry. Clarify whether the record applies to the sensing element alone or the complete measuring chain. The desired certificate should be agreed before delivery, with identification that can be traced to the offered unit. A generic family document is not a substitute for an agreed unit-specific record.
Related designs are comparison routes
TSP111 and TSP131 use different thermowell arrangements within the broader family. Compare them with ABB TSP121.Y0.S2.A1.A01.A4.Y0.N3.T1.K1.T2.B1.Y1 L=290MM only through a reviewed mechanical and measurement requirement.
For an exact spare, preserve every code segment and the length text on the order. At receipt, reconcile the label, drawing and included components before assigning the assembly to the temperature tag.
